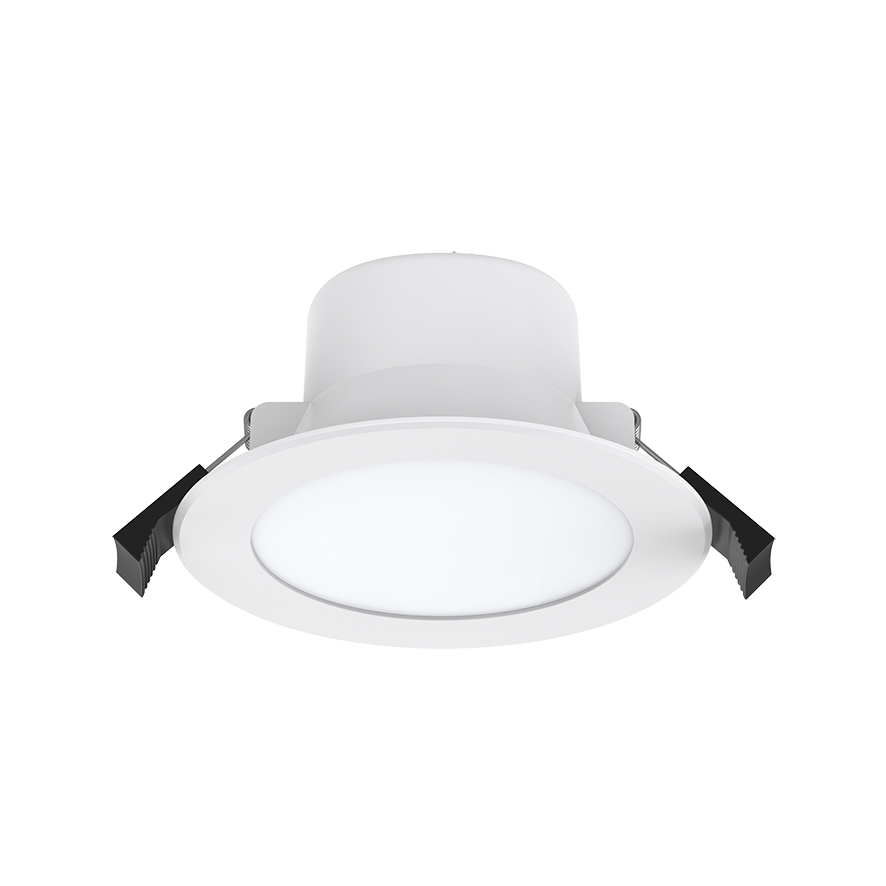

90mm 8W LED Downlight, High Lumen, Tricolour
Downlights

90mm 8W LED Downlight, High Lumen, Tricolour

$9.00ex-GST · $9.90 inc-GSTIn stock

SKU: DL9ESF-HL

GH LIGHTOTHER SUPPLIER'S LIGHT
875 Lumens700-800 Lumens
50000Hr Lifespan20-25000Hr Lifespan
Dotless - Thick DiffuserThin Diffuser
3 Year Warranty1 Year Warranty
IP54 (Cover) - suitable for outdoors and wet areasIP20 - Suitable for indoors (no wet areas)

NEW ECONOMICAL good quality 8W LED colour-changing light technology downlight, fully dimmable, high CRI, high lumen output with good heat dissipation and no UV. Unique with three popular and practical colour output options which are adjustable by switch on the back of the light to Warm (3000k), Natural (4000k) or Bright (5700k). Built-in driver with no LED show, has correct diffuser to give an even spread of light. SAA and rated for IC Abutted and Covered (IC-4) usage to allow for covering with thermal insulation. With internal driver design, it is our most economical and practical downlight option. Recommended for general lighting applications in homes, offices, supermarkets, shops, schools, hotels as well as for public areas such as stairways, lobbies, reception areas, corridors etc. With IP54 rating, these lights can be used under patios and eaves. Comes with cord and plug, built-in driver. Available as standard with a Flat White cover. Optional Brushed Chrome or Matte Black Covers - $2.00 each +GST NEW Brass Cover - $3.00 each +GST - limited stock ONLY $9.00 each +GST Only $8.00 each plus GST for 36+ TRADE Customers contact us for bulk pricing.

1
  • Australian certified
  • Perth stock & support
  • Fast WA delivery

Specifications

CategoryDownlights
ReplacesReplaces 100-120Watt
Brightness790-875 lumens, up to 109 lumens per watt
Power consumption8Watt
Beam angle100º
DimmableDimmable 10-100%
Lifespan50 000 hrs
SpecificationsAC200-240V, 50-60Hz
Weather RatingIP54 / IP40
Material ConstructionPlastic Coated Aluminium, PC Diffuser
DimensionsØ115mmx59 Cutout 90-95mm
Packed Dimensions1205x120x70mm 1pce
Weight0.2kg/pce
Instant startInstant start
Low heat outputLow heat output
Light Output Colour3000 / 4000 / 5700k
Colour Rendering Index≥80
Shade/HousingMatte White
Warranty3Yr
CertificationGlobal Mark, Australian Certified, IC-4

Spec sheets and guides

Spec sheetPDFInstallation guidePDF

You might also need

Good to know

90mm 8W LED Downlight, High Lumen, Tricolour: at a glance

The 90mm 8W LED Downlight, High Lumen, Tricolour (code DL9ESF-HL) is part of the Greenhse LED downlight range. Key figures as listed: 8Watt; 790-875 lumens, up to 109 lumens per watt; 3000 / 4000 / 5700k; cut-out 90-95mm; IP54 / IP40; warranty 3Yr. It is sold online at greenhse.com and at the Ellenbrook showroom in Perth, WA.

Questions and answers

Can insulation be laid over the 90mm 8W LED Downlight, High Lumen, Tricolour?

Yes. It is rated IC-4 (abutted and covered), which allows it to be covered with thermal insulation.

What kind of dimmer does the 90mm 8W LED Downlight, High Lumen, Tricolour work with?

Its spec sheet lists it as triac dimmable from 10 to 100%. Have your licensed electrician confirm the dimmer is compatible before you buy.

Can the 90mm 8W LED Downlight, High Lumen, Tricolour be used under a patio or eaves?

Yes. With its IP54 rating it can be used under patios and eaves.

Does the 90mm 8W LED Downlight, High Lumen, Tricolour need a separate driver?

No. The driver is built in and it comes with a cord and plug.

How bright is the 90mm 8W LED Downlight, High Lumen, Tricolour?

Listed brightness: 790-875 lumens, up to 109 lumens per watt. Power: 8Watt. Beam angle: 100º. It replaces: 100-120Watt.

What colour light does the 90mm 8W LED Downlight, High Lumen, Tricolour give?

Listed light colour: 3000 / 4000 / 5700k. Colour rendering index (CRI): ≥80.

Can the 90mm 8W LED Downlight, High Lumen, Tricolour be dimmed?

Yes. Its dimming is listed as: Dimmable 10-100%. Have your licensed electrician confirm the dimmer or controller is compatible before you buy.

What cut-out size does the 90mm 8W LED Downlight, High Lumen, Tricolour need?

The listed cut-out is 90-95mm. Full listed dimensions: Ø115mmx59 Cutout 90-95mm. Measure the hole in the ceiling (the cut-out), not the old fitting, and match it.

Where can the 90mm 8W LED Downlight, High Lumen, Tricolour be used, and what is its IP rating?

Its listed rating is: IP54 / IP40. As a guide, IP54 is splash resistant (bathrooms, under eaves); IP40 has no protection against water, so it is for indoor dry areas. Ask your electrician which rating the spot needs, or call us.

Do I need an electrician to install the 90mm 8W LED Downlight, High Lumen, Tricolour?

In Western Australia all 240V lighting must be installed by a licensed electrician, and we recommend a licensed electrician installs and connects every product, including 12V and 24V strip, transformers, controllers and star lights. Greenhse supplies the products and your electrician installs them. Installation guides and spec sheets are on the installation page.

What options does the 90mm 8W LED Downlight, High Lumen, Tricolour come in?

Options you choose on this page: Downlight Cover Options: White Cover (Standard), Brushed Chrome Cover, Matte Black.

What warranty does the 90mm 8W LED Downlight, High Lumen, Tricolour have?

The warranty listed for the 90mm 8W LED Downlight, High Lumen, Tricolour is: 3Yr. A Greenhse warranty covers manufacturing faults. It doesn't cover physical damage, incorrect installation, modification or power surges.

How long does the 90mm 8W LED Downlight, High Lumen, Tricolour last?

Listed lifespan: 50,000 hrs.

How do I buy the 90mm 8W LED Downlight, High Lumen, Tricolour, and can I pick it up in Perth?

Order it online at greenhse.com, by phone on (08) 9297 2969, by email to sales@greenhse.com.au or at the Ellenbrook counter (5/1 Locke Ln, Ellenbrook WA 6069). Click & Collect from the Ellenbrook showroom is free, we deliver across the Perth metro area, and freight outside Perth is quoted. We need a street address (no PO Boxes or parcel lockers) and ship within Australia only. Every price is shown both ex GST and inc GST, in Australian dollars. Stock is held in Perth; if this page shows it out of stock, call (08) 9297 2969 for the arrival date.

Can I return the 90mm 8W LED Downlight, High Lumen, Tricolour?

Unused items in their original, resaleable packaging can be returned within 30 days with your receipt for a refund or exchange. Strip cut to length, special orders and fittings that have been installed can't be returned for change of mind. If something arrives damaged or faulty, contact us straight away with a photo on (08) 9297 2969 or sales@greenhse.com.au. Full details are on the returns and shipping page.

What power supply does the 90mm 8W LED Downlight, High Lumen, Tricolour need?

Listed power supply: AC200-240V, 50-60Hz.

What is the 90mm 8W LED Downlight, High Lumen, Tricolour made of?

Listed construction: Plastic Coated Aluminium, PC Diffuser. Shade, housing or finish: Matte White.
