greenhse Technologies

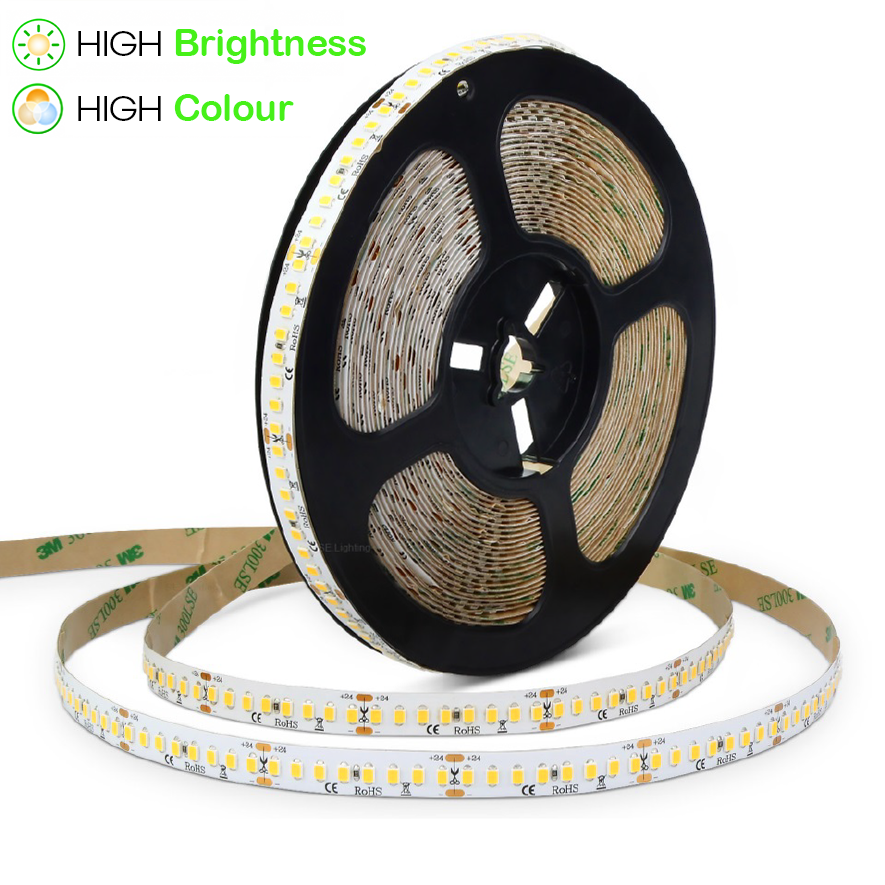

23w/m SMD Display Strip Light (24V)
LED Strip Lights

23w/m SMD Display Strip Light (24V)

$17.00ex-GST · $18.70 inc-GSTIn stock

SKU: st24v-23w-SMD-1-1

NEW HIGH LUMEN STRIP LIGHT 24V – Premium-quality professional display lighting for any space. • 23w/m • IP20 • Display grade: Very bright up to 3800 lumens/metre - Extreme high brightness • 240 LEDs per metre • High colour accuracy (90+) for accurate display lighting • Seamless/dotless light which gives excellent light quality • 24V for lower heat and longer lengths (up to 10 metres) • 5m Single feed / 10m dual feed • 4000k/5000k • Transformer required • Wide range of optional receivers and controllers available • WiFi, full SMART control on Smart devices • Remote Controllers available • Amazon Alexa and Google Home compatible NB We are unable to ship/post channels due to risk of damage and constraints imposed by couriers. $17.00 +GST per metre for 23w/m in 4000k/5000k, IP20 Pricing depends on a number of variables such as length of strip, controller/receiver, transformer size, choice of remote, channel type etc. Specifications may vary dependent on availability. NB: Due to the level of complexity including the very large number of options available and to ensure you select the correct product for your application, please research your requirements carefully. We recommended you confirm your requirements with your electrician.

Build your strip light kit

Loading the kit builder…

  • Australian certified
  • Perth stock & support
  • Fast WA delivery

Key features

  • 23w/m
  • IP20
  • Display grade: Very bright up to 3800 lumens/metre - Extreme high brightness
  • 240 LEDs per metre
  • High colour accuracy (90+) for accurate display lighting
  • Seamless/dotless light which gives excellent light quality
  • 24V for lower heat and longer lengths (up to 10 metres)
  • 5m Single feed / 10m dual feed
  • 4000k/5000k
  • Transformer required
  • Wide range of optional receivers and controllers available
  • WiFi, full SMART control on Smart devices
  • Remote Controllers available
  • Amazon Alexa and Google Home compatible

Specifications

CategoryLED Strip Lights
UseProfessional quality, modular, very high brightness, thin strip lighting in 23w/metre - display grade, CRI 90+. Suitable for commercial displays and specialised retrofitting. IP20 for dry display cabinets and shelving (not for wet areas). Recommended to be installed by a licensed electrician.
BrightnessUp to 3800 lumens/metre (165 lm/W) & 240 LEDs/metre
Power23w per metre
Beam angle120º
DimmableDimmable (with appropriate receiver)
Lifespan50 000 hrs
FittingChannel options available
Specifications24V DC
Weather RatingIP20
MaterialPCB/Silicon Gel (model dependent)
Dimensions10mmx2.2mm
Instant startInstant start
Light Output Color4000k or 5000k
Colour Rendering Index90+
Shade/Housing3oz White PCB
Warranty2Yr limited, Needs to be installed by qualified electrician, excludes physical damage.
CertificationRCM, CE

Spec sheets and guides

Spec sheetPDFInstallation guidePDF

You might also need

Good to know

23w/m SMD Display Strip Light (24V): at a glance

The 23w/m SMD Display Strip Light (24V) (code st24v-23w-SMD-1-1) is part of the Greenhse LED strip light range. Key figures as listed: 23w per metre; Up to 3800 lumens/metre (165 lm/W) & 240 LEDs/metre; 4000k or 5000k; IP20. It is sold online at greenhse.com and at the Ellenbrook showroom in Perth, WA, priced per metre.

Questions and answers

How bright is the 23w/m SMD Display Strip Light (24V)?

Listed brightness: Up to 3800 lumens/metre (165 lm/W) & 240 LEDs/metre. Power: 23w per metre. Beam angle: 120º.

What colour light does the 23w/m SMD Display Strip Light (24V) give?

Listed light colour: 4000k or 5000k. Colour rendering index (CRI): 90+.

Can the 23w/m SMD Display Strip Light (24V) be dimmed?

Yes. Its dimming is listed as: Dimmable (with appropriate receiver). Have your licensed electrician confirm the dimmer or controller is compatible before you buy.

What size is the 23w/m SMD Display Strip Light (24V)?

Listed dimensions: 10mmx2.2mm.

Where can the 23w/m SMD Display Strip Light (24V) be used, and what is its IP rating?

Its listed rating is: IP20. As a guide, IP20 is for indoor dry areas only. Ask your electrician which rating the spot needs, or call us.

Do I need an electrician to install the 23w/m SMD Display Strip Light (24V)?

In Western Australia all 240V lighting must be installed by a licensed electrician, and we recommend a licensed electrician installs and connects every product, including 12V and 24V strip, transformers, controllers and star lights. Greenhse supplies the products and your electrician installs them. Listed fitting: Channel options available. Installation guides and spec sheets are on the installation page.

What do I need to run the 23w/m SMD Display Strip Light (24V)?

24V strip runs from a transformer and can be cut on the marked cut lines. A full setup needs the strip, a transformer sized to the length of the run, a controller if you want dimming or colour, and usually an aluminium channel with a diffuser for a clean, dotless line. The Strip Light Finder on the strip lights page asks four questions and builds the full kit.

What options does the 23w/m SMD Display Strip Light (24V) come in?

Options you choose on this page: Strip Light Colour Temperature: Natural White (4000k), Bright White (5000k).

What warranty does the 23w/m SMD Display Strip Light (24V) have?

The warranty listed for the 23w/m SMD Display Strip Light (24V) is: 2Yr limited, Needs to be installed by qualified electrician, excludes physical damage. A Greenhse warranty covers manufacturing faults. It doesn't cover physical damage, incorrect installation, modification or power surges.

How long does the 23w/m SMD Display Strip Light (24V) last?

Listed lifespan: 50,000 hrs.

How do I buy the 23w/m SMD Display Strip Light (24V), and can I pick it up in Perth?

Order it online at greenhse.com, by phone on (08) 9297 2969, by email to sales@greenhse.com.au or at the Ellenbrook counter (5/1 Locke Ln, Ellenbrook WA 6069). Click & Collect from the Ellenbrook showroom is free, we deliver across the Perth metro area, and freight outside Perth is quoted. We need a street address (no PO Boxes or parcel lockers) and ship within Australia only. Every price is shown both ex GST and inc GST, in Australian dollars. This product is priced per metre. Stock is held in Perth; if this page shows it out of stock, call (08) 9297 2969 for the arrival date.

Can I return the 23w/m SMD Display Strip Light (24V)?

Unused items in their original, resaleable packaging can be returned within 30 days with your receipt for a refund or exchange. Strip cut to length, special orders and fittings that have been installed can't be returned for change of mind. If something arrives damaged or faulty, contact us straight away with a photo on (08) 9297 2969 or sales@greenhse.com.au. Full details are on the returns and shipping page.

What power supply does the 23w/m SMD Display Strip Light (24V) need?

Listed power supply: 24V DC.

What is the 23w/m SMD Display Strip Light (24V) made of?

Listed construction: PCB/Silicon Gel (model dependent). Shade, housing or finish: 3oz White PCB.
