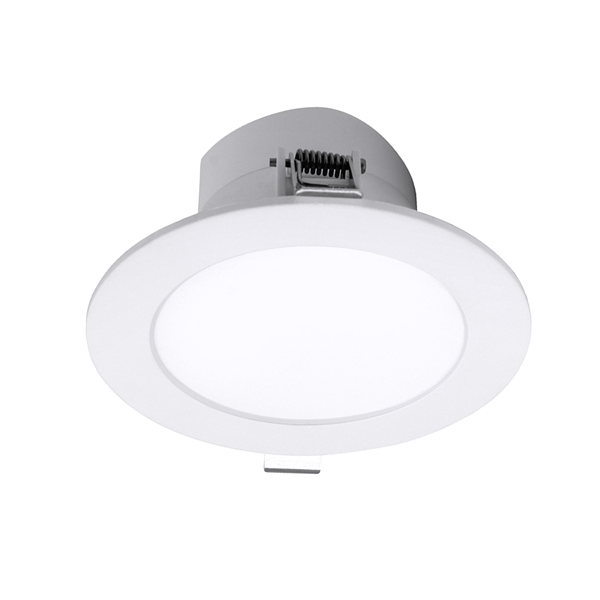

90mm 10W LED Downlight, Tricolour, White Cover
Downlights

90mm 10W LED Downlight, Tricolour, White Cover

$10.00ex-GST · $11.00 inc-GSTIn stock

SKU: DL10ES-F

GH LIGHTOTHER SUPPLIER'S LIGHT
960 Lumens700-850 Lumens
40000Hr Lifespan20-25000Hr Lifespan
Dotless - Thick DiffuserThin Diffuser
4 Year Warranty1 Year Warranty
IP54 (Cover) - suitable for outdoors and wet areasIP20 - Suitable for indoors (no wet areas)

Limited stock, please call 08 9297 2969 to enquire. LED colour-changing light technology, fully dimmable from 10-100%, high CRI, high lumen output with good heat dissipation, no flickering and no UV. Unique with three popular and practical colour output options which are adjustable by switch on the back of the light to Warm (3000k), Natural (4000k) or Bright (5000k). Built-in driver with no LED show, has correct diffuser to give an even spread of light. SAA and rated for IC Abutted and Covered (IC-4) usage to allow for covering with thermal insulation. With internal driver design, it is our most economical and practical downlight option. Recommended for general lighting applications in homes, offices, supermarkets, shops, schools, hotels as well as for public areas such as stairways, lobbies, reception areas, corridors etc. With IP54 rating, these lights can be used under patios and eaves. Comes with cord and plug, built-in driver. Available as standard with a flat white cover - Brushed Chrome or Black cover is optional . Brushed Chrome or Black Covers option available at $2.00 each +GST. Brass Cover available at $3.00 each +GST - Limited Stock $10.00 each +GST Only $9.50 each plus GST for 30+

1
  • Australian certified
  • Perth stock & support
  • Fast WA delivery

Specifications

CategoryDownlights
ReplacesReplaces 100-120Watt
Brightness800/950/870 lumens (3000k, 4000k, 5000k)
Power consumption10Watt
Beam angle110º
DimmableDimmable 10-100%
Lifespan40 000 hrs
SpecificationsAC200-240V, 50-60Hz
Weather RatingIP54 / IP40
Material ConstructionAluminium, PCB, PMMA
DimensionsØ115mmx61 Cutout 90-95mm
Packed Dimensions12.5x12.5x70cm 1pce
Weight0.3kg/pce packed
Instant startInstant start
Low heat outputLow heat output
No MercuryNo Mercury
Light Output Colour3000 / 4000 / 5700k
Colour Rendering Index80
Shade/HousingMatte White / Matte Black / Brushed Chrome / Brass
Warranty4Yr
CertificationSAA, RCM, CE, IC-4

Spec sheets and guides

Spec sheetPDFInstallation guidePDF

You might also need

Good to know

90mm 10W LED Downlight, Tricolour, White Cover: at a glance

The 90mm 10W LED Downlight, Tricolour, White Cover (code DL10ES-F) is part of the Greenhse LED downlight range. Key figures as listed: 10Watt; 800/950/870 lumens (3000k, 4000k, 5000k); 3000 / 4000 / 5700k; cut-out 90-95mm; IP54 / IP40; warranty 4Yr. It is sold online at greenhse.com and at the Ellenbrook showroom in Perth, WA.

Questions and answers

Can insulation be laid over the 90mm 10W LED Downlight, Tricolour, White Cover?

Yes. It is rated IC-4 (abutted and covered), which allows it to be covered with thermal insulation.

Can the 90mm 10W LED Downlight, Tricolour, White Cover be used under a patio or eaves?

Yes. With its IP54 rating it can be used under patios and eaves.

Does the 90mm 10W LED Downlight, Tricolour, White Cover need a separate driver or transformer?

No. The driver is built in and it comes with a cord and plug. In Western Australia all 240V lighting must be installed by a licensed electrician.

How do I change the colour of the 90mm 10W LED Downlight, Tricolour, White Cover?

A switch on the back of the light sets it to Warm, Natural or Bright white, so you can pick the colour when it is installed.

How many of the 90mm 10W LED Downlight, Tricolour, White Cover do I need for my room?

The Downlight Finder on the downlights page asks four questions (hole size, beam, colour and room size) and tells you which downlight and how many you need.

How bright is the 90mm 10W LED Downlight, Tricolour, White Cover?

Listed brightness: 800/950/870 lumens (3000k, 4000k, 5000k). Power: 10Watt. Beam angle: 110º. It replaces: 100-120Watt.

What colour light does the 90mm 10W LED Downlight, Tricolour, White Cover give?

Listed light colour: 3000 / 4000 / 5700k. Colour rendering index (CRI): 80.

Can the 90mm 10W LED Downlight, Tricolour, White Cover be dimmed?

Yes. Its dimming is listed as: Dimmable 10-100%. Have your licensed electrician confirm the dimmer or controller is compatible before you buy.

What cut-out size does the 90mm 10W LED Downlight, Tricolour, White Cover need?

The listed cut-out is 90-95mm. Full listed dimensions: Ø115mmx61 Cutout 90-95mm. Measure the hole in the ceiling (the cut-out), not the old fitting, and match it.

Where can the 90mm 10W LED Downlight, Tricolour, White Cover be used, and what is its IP rating?

Its listed rating is: IP54 / IP40. As a guide, IP54 is splash resistant (bathrooms, under eaves); IP40 has no protection against water, so it is for indoor dry areas. Ask your electrician which rating the spot needs, or call us.

Do I need an electrician to install the 90mm 10W LED Downlight, Tricolour, White Cover?

In Western Australia all 240V lighting must be installed by a licensed electrician, and we recommend a licensed electrician installs and connects every product, including 12V and 24V strip, transformers, controllers and star lights. Greenhse supplies the products and your electrician installs them. Installation guides and spec sheets are on the installation page.

What options does the 90mm 10W LED Downlight, Tricolour, White Cover come in?

Options you choose on this page: Downlight Cover: White Cover (Standard), Brushed Chrome, Matte Black.

What warranty does the 90mm 10W LED Downlight, Tricolour, White Cover have?

The warranty listed for the 90mm 10W LED Downlight, Tricolour, White Cover is: 4Yr. A Greenhse warranty covers manufacturing faults. It doesn't cover physical damage, incorrect installation, modification or power surges.

How long does the 90mm 10W LED Downlight, Tricolour, White Cover last?

Listed lifespan: 40,000 hrs.

How do I buy the 90mm 10W LED Downlight, Tricolour, White Cover, and can I pick it up in Perth?

Order it online at greenhse.com, by phone on (08) 9297 2969, by email to sales@greenhse.com.au or at the Ellenbrook counter (5/1 Locke Ln, Ellenbrook WA 6069). Click & Collect from the Ellenbrook showroom is free, we deliver across the Perth metro area, and freight outside Perth is quoted. We need a street address (no PO Boxes or parcel lockers) and ship within Australia only. Every price is shown both ex GST and inc GST, in Australian dollars. Stock is held in Perth; if this page shows it out of stock, call (08) 9297 2969 for the arrival date.

Can I return the 90mm 10W LED Downlight, Tricolour, White Cover?

Unused items in their original, resaleable packaging can be returned within 30 days with your receipt for a refund or exchange. Strip cut to length, special orders and fittings that have been installed can't be returned for change of mind. If something arrives damaged or faulty, contact us straight away with a photo on (08) 9297 2969 or sales@greenhse.com.au. Full details are on the returns and shipping page.

What power supply does the 90mm 10W LED Downlight, Tricolour, White Cover need?

Listed power supply: AC200-240V, 50-60Hz.

What is the 90mm 10W LED Downlight, Tricolour, White Cover made of?

Listed construction: Aluminium, PCB, PMMA. Shade, housing or finish: Matte White / Matte Black / Brushed Chrome / Brass.
